Part Number |

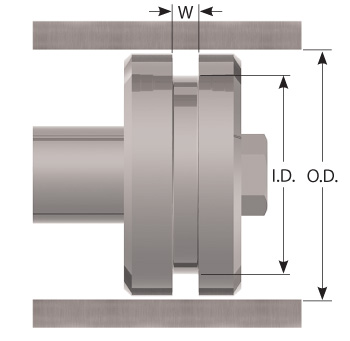

Machine Dimensions |
|---|
O.D. | I.D. | Width | M2P 105122MR | 10.00 | 5.10 | 2.20 | M2P 127122MR | 12.00 | 7.10 | 2.20 | M2P 149222MR | 14.00 | 9.20 | 2.20 | M2P 157532MR | 15.00 | 7.50 | 3.20 | M2P 168532MR | 16.00 | 8.50 | 3.20 | M2P 1810532MR | 18.00 | 10.50 | 3.20 | M2P 2012532MR | 20.00 | 12.50 | 3.20 | M2P 2214532MR | 22.00 | 14.50 | 3.20 | M2P 2516934MR | 25.00 | 16.90 | 3.40 | M2P 2517532MR | 25.00 | 17.50 | 3.20 | M2P 2820532MR | 28.00 | 20.50 | 3.20 | M2P 3022532MR | 30.00 | 22.50 | 3.20 | M2P 3224532MR | 32.00 | 24.50 | 3.20 | M2P 3527532MR | 35.00 | 27.50 | 3.20 | M2P 362542MR | 36.00 | 25.00 | 4.20 | M2P 3628532MR | 36.00 | 28.50 | 3.20 | M2P 3652932MR | 36.50 | 29.00 | 3.20 | M2P 3830532MR | 38.00 | 30.50 | 3.20 | M2P 402942MR | 40.00 | 29.00 | 4.20 | M2P 423142MR | 42.00 | 31.00 | 4.20 | M2P 42325MR | 42.00 | 32.00 | 5.00 | M2P 4532546MR | 45.00 | 32.50 | 4.60 | M2P 453442MR | 45.00 | 34.00 | 4.20 | M2P 5034663MR | 50.00 | 34.60 | 6.30 | M2P 503942MR | 50.00 | 39.00 | 4.20 | M2P 554442MR | 55.00 | 44.00 | 4.20 | M2P 564542MR | 56.00 | 45.00 | 4.20 | M2P 6044563MR | 60.00 | 44.50 | 6.30 | M2P 604942MR | 60.00 | 49.00 | 4.20 | M2P 635242MR | 63.00 | 52.00 | 4.20 | M2P 655442MR | 65.00 | 54.00 | 4.20 | M2P 7054563MR | 70.00 | 54.50 | 6.30 | M2P 70557MR | 70.00 | 55.00 | 7.00 |
|
Part Number |
Machine Dimensions |
|---|
O.D. | I.D. | Width | M2P 705842MR | 70.00 | 58.00 | 4.20 | M2P 705942MR | 70.00 | 59.00 | 4.20 | M2P 7558873MR | 75.00 | 58.80 | 7.30 | M2P 7559563MR | 75.00 | 59.50 | 6.30 | M2P 756442MR | 75.00 | 64.00 | 4.20 | M2P 805981MR | 80.00 | 59.00 | 8.10 | M2P 8064563MR | 80.00 | 64.50 | 6.30 | M2P 856481MR | 85.00 | 64.00 | 8.10 | M2P 8569563MR | 85.00 | 69.50 | 6.30 | M2P 906981MR | 90.00 | 69.00 | 8.10 | M2P 9074563MR | 90.00 | 74.50 | 6.30 | M2P 957481MR | 95.00 | 74.00 | 8.10 | M2P 9579563MR | 95.00 | 79.50 | 6.30 | M2P 1007981MR | 100.00 | 79.00 | 8.10 | M2P 10084563MR | 100.00 | 84.50 | 6.30 | M2P 10086272MR | 100.00 | 86.20 | 7.20 | M2P 1028655MR | 102.00 | 86.00 | 5.50 | M2P 10589563MR | 105.00 | 89.50 | 6.30 | M2P 1108981MR | 110.00 | 89.00 | 8.10 | M2P 11094563MR | 110.00 | 94.50 | 6.30 | M2P 1159481MR | 115.00 | 94.00 | 8.10 | M2P 11599563MR | 115.00 | 99.50 | 6.30 | M2P 1209981MR | 120.00 | 99.00 | 8.10 | M2P 120104563MR | 120.00 | 104.50 | 6.30 | M2P 12510481MR | 125.00 | 104.00 | 8.10 | M2P 125109563MR | 125.00 | 109.50 | 6.30 | M2P 13010881MR | 130.00 | 108.00 | 8.10 | M2P 13010981MR | 130.00 | 109.00 | 8.10 | M2P 130114563MR | 130.00 | 114.50 | 6.30 | M2P 13511481MR | 135.00 | 114.00 | 8.10 | M2P 14011981MR | 140.00 | 119.00 | 8.10 | M2P 15012981MR | 150.00 | 129.00 | 8.10 | M2P 16013981MR | 160.00 | 139.00 | 8.10 |
|
Part Number |
Machine Dimensions |
|---|
O.D. | I.D. | Width | M2P 17014981MR | 170.00 | 149.00 | 8.10 | M2P 175159563MR | 175.00 | 159.50 | 6.30 | M2P 18015981MR | 180.00 | 159.00 | 8.10 | M2P 18516481MR | 185.00 | 164.00 | 8.10 | M2P 19016981MR | 190.00 | 169.00 | 8.10 | M2P 20017981MR | 200.00 | 179.00 | 8.10 | M2P 20018279MR | 200.00 | 182.00 | 7.90 | M2P 21018981MR | 210.00 | 189.00 | 8.10 | M2P 21519481MR | 215.00 | 194.00 | 8.10 | M2P 22019981MR | 220.00 | 199.00 | 8.10 | M2P 22520481MR | 225.00 | 204.00 | 8.10 | M2P 23020981MR | 230.00 | 209.00 | 8.10 | M2P 24021981MR | 240.00 | 219.00 | 8.10 | M2P 25022981MR | 250.00 | 229.00 | 8.10 | M2P 26023981MR | 260.00 | 239.00 | 8.10 | M2P 27024981MR | 270.00 | 249.00 | 8.10 | M2P 28025981MR | 280.00 | 259.00 | 8.10 | M2P 29026981MR | 290.00 | 269.00 | 8.10 | M2P 30027581MR | 300.00 | 275.00 | 8.10 | M2P 30027981MR | 300.00 | 279.00 | 8.10 | M2P 31028981MR | 310.00 | 289.00 | 8.10 | M2P 32029981MR | 320.00 | 299.00 | 8.10 | M2P 33030581MR | 330.00 | 305.00 | 8.10 | M2P 330305581MR | 330.00 | 305.50 | 8.10 | M2P 340315581MR | 340.00 | 315.50 | 8.10 | M2P 350325581MR | 350.00 | 325.50 | 8.10 | M2P 360335581MR | 360.00 | 335.50 | 8.10 |
|
Part Number |
Machine Dimensions |
|---|
O.D. | I.D. | Width |
M2P 370345581MR | 370.00 | 345.50 | 8.10 | M2P 380355581MR | 380.00 | 355.50 | 8.10 | M2P 390365581MR | 390.00 | 365.50 | 8.10 | M2P 40037581MR | 400.00 | 375.00 | 8.10 | M2P 400375581MR | 400.00 | 375.50 | 8.10 | M2P 410385581MR | 410.00 | 385.50 | 8.10 | M2P 420395581MR | 420.00 | 395.50 | 8.10 | M2P 430405581MR | 430.00 | 405.50 | 8.10 | M2P 440415581MR | 440.00 | 415.50 | 8.10 | M2P 450425581MR | 450.00 | 425.50 | 8.10 | M2P 460435581MR | 460.00 | 435.50 | 8.10 | M2P 480455581MR | 480.00 | 455.50 | 8.10 | M2P 500475581MR | 500.00 | 475.50 | 8.10 | M2P 520495581MR | 520.00 | 495.50 | 8.10 | M2P 530505581MR | 530.00 | 505.50 | 8.10 | M2P 540515581MR | 540.00 | 515.50 | 8.10 | M2P 55052581MR | 550.00 | 525.00 | 8.10 | M2P 560535581MR | 560.00 | 535.50 | 8.10 | M2P 580555581MR | 580.00 | 555.50 | 8.10 | M2P 600575581MR | 600.00 | 575.50 | 8.10 | M2P 630605581MR | 630.00 | 605.50 | 8.10 | M2P 650625581MR | 650.00 | 625.50 | 8.10 | M2P 70067295MR | 700.00 | 672.00 | 9.50 | M2P 71068295MR | 710.00 | 682.00 | 9.50 | M2P 72069295MR | 720.00 | 692.00 | 9.50 | M2P 80077295MR | 800.00 | 772.00 | 9.50 | M2P 96593795MR | 965.00 | 937.00 | 9.50 |
|
