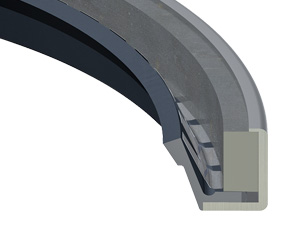

L1M Style - Metric




Hi-Tech Seals also offers our large bore L1M and L2M seal (available in imperial and metric sizes) for heavy duty applications such as equipment used in steel mills, pulp and paper plants, turbines and more.
Standard Material: The standard L1M is composed of a steel outer case, a steel filler ring, a stainless steel finger spring and a Nitrile/PTFE sealing element. The sealing element is also available in Highly Saturated Nitrile/ PTFE, Silicone/PTFE and Fluorocarbon/PTFE.

Additional sizes available in our imperial line. For information please visit the imperial section of our website.
 Part Number
Imperial
Metric
Garlock Ref. #
Shaft
O.D.
Height
Shaft
O.D.
Height
 OS 14017015L1M
140.00
170.00
15.00
5.512
6.693
0.591
53X-2990
 OS 15017015L1M
150.00
170.00
15.00
5.906
6.693
0.591
53X-3121
 OS 15018013L1M
150.00
180.00
13.00
5.906
7.087
0.512
53X-3124
 OS 18022016L1M
180.00
220.00
16.00
7.087
8.661
0.630
53X-3075
 OS 20024020L1M
200.00
240.00
20.00
7.874
9.449
0.787
53X-3013
 OS 22026016L1M
220.00
260.00
16.00
8.661
10.236
0.630
53X-3074
 OS 24028020L1M
240.00
280.00
20.00
9.449
11.024
0.787
53X-3015
 OS 26030420L1M
260.00
304.00
20.00
10.236
11.969
0.787
53X-3076
 OS 27531918L1M
275.00
319.00
18.00
10.827
12.559
0.709
53X-3078
 OS 275319519L1M
275.00
319.50
19.00
10.827
12.579
0.748
53X-3096
 OS 31035015L1M
310.00
350.00
18.00
12.205
13.780
0.709
53X-3115
 OS 32036418L1M
320.00
364.00
18.00
12.598
14.331
0.709
53X-3079
 OS 32036420L1M
320.00
364.00
20.00
12.598
14.331
0.787
53X-3080
 OS 33037018L1M
330.00
370.00
18.00
12.992
14.567
0.709
53X-3007
 OS 34038018L1M
340.00
380.00
18.00
13.386
14.961
0.709
53X-3036
 OS 34038020L1M
340.00
380.00
20.00
13.386
14.961
0.787
53X-3116
 OS 37039012L1M
370.00
390.00
12.00
14.567
15.354
0.472
53X-4105
 OS 39043016L1M
390.00
430.00
16.00
15.354
16.929
0.630
53X-4616
 OS 40044020L1M
400.00
440.00
20.00
15.748
17.323
0.787
53X-3038
 OS 42046020L1M
420.00
460.00
20.00
16.535
18.110
0.787
53X-3010
 OS 44048020L1M
440.00
480.00
20.00
17.323
18.898
0.787
53X-4192
 OS 47052022L1M
470.00
520.00
22.00
18.504
20.472
0.866
53X-3029
 OS 47053020L1M
470.00
530.00
20.00
18.504
20.866
0.787
53X-3062
 OS 48553519L1M
485.00
535.00
19.00
19.094
21.063
0.748
53X-4220
 OS 50055019L1M
500.00
550.00
19.00
19.685
21.654
0.748
53X-4232
 OS 52057022L1M
520.00
570.00
22.00
20.472
22.441
0.866
53X-3027
 OS 56061020L1M
560.00
610.00
20.00
22.047
24.016
0.787
53X-7266
 OS 56560120L1M
565.00
601.00
20.00
22.244
23.661
0.787
53X-9995
 OS 57063020L1M
570.00
630.00
20.00
22.441
24.803
0.787
53X-3061
 OS 58062020L1M
580.00
620.00
20.00
22.835
24.409
0.787
53X-3053
 OS 60064020L1M
600.00
640.00
20.00
23.622
25.197
0.787
53X-8624


 Part Number
Imperial
Metric
Garlock Ref. #
Shaft
O.D.
Height
Shaft
O.D.
Height
 OS 63067020L1M
630.00
670.00
20.00
24.803
26.378
0.787
53X-3020
 OS 63069020L1M
630.00
690.00
20.00
24.803
27.165
0.787
53X-3059
 OS 64068020L1M
640.00
680.00
20.00
25.197
26.772
0.787
53X-3019
 OS 65071425L1M
650.00
714.00
25.00
25.591
28.110
0.984
53X-3016
 OS 67072022L1M
670.00
720.00
22.00
26.378
28.346
0.866
53X-3081
 OS 69073020L1M
690.00
730.00
20.00
27.165
28.740
0.787
53X-3054
 OS 70076425L1M
700.00
764.00
25.00
27.559
30.079
0.984
53X-3089
 OS 74077815L1M
740.00
778.00
15.00
29.134
30.630
0.591
53X-3072
 OS 75081425L1M
750.00
814.00
25.00
29.528
32.047
0.984
53X-4629
 OS 78084425L1M
780.00
844.00
25.00
30.709
33.228
0.984
53X-3032
 OS 79085425L1M
790.00
854.00
25.00
31.102
33.622
0.984
53X-6666
 OS 84090425L1M
840.00
904.00
25.00
33.071
35.591
0.984
53X-3034
 OS 86092025L1M
860.00
920.00
25.00
33.858
36.220
0.984
53X-3055
 OS 89095422L1M
890.00
954.00
22.00
35.039
37.559
0.866
53X-3077
 OS 90595522L1M
905.00
955.00
22.00
35.630
37.598
0.866
53X-3065
 OS 990104025L1M
990.00
1040.00
25.00
38.976
40.945
0.984
53X-9998
 OS 1000106425L1M
1000.00
1064.00
25.00
39.370
41.890
0.984
53X-3093
 OS 1030107025L1M
1030.00
1070.00
25.00
40.551
42.126
0.984
53X-3070
 OS 1055110025L1M
1055.00
1100.00
25.00
41.535
43.307
0.984
53X-3012
 OS 1105116022L1M
1105.00
1160.00
22.00
43.504
45.669
0.866
53X-4640
 OS 1105116025L1M
1105.00
1160.00
25.00
43.504
45.669
0.984
53X-3018
 OS 1350141525L1M
1350.00
1415.00
25.00
53.150
55.709
0.984
53X-3028
