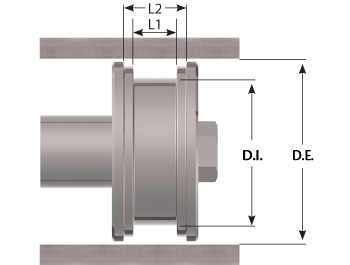

Numéro de pièce | Dimensions de machine | |
D.I. | D.E. | L1 | L2 | DAM 15251220 | 15.00 | 25.00 | 12.00 | 20.00 | DAM 2130135175 | 21.00 | 30.00 | 13.50 | 17.50 | DAM 2232155207 | 22.00 | 32.00 | 15.50 | 20.70 | DAM 22321628 | 22.00 | 32.00 | 16.00 | 28.00 | DAM 24401830 | 24.00 | 40.00 | 18.00 | 30.00 | DAM 2535155207 | 25.00 | 35.00 | 15.50 | 20.70 | DAM 2535163291 | 25.00 | 35.00 | 16.30 | 29.10 | DAM 26401520 | 26.00 | 40.00 | 15.00 | 20.00 | DAM 29451831 | 29.00 | 45.00 | 18.00 | 31.00 | DAM 30401220 | 30.00 | 40.00 | 12.00 | 20.00 | DAM 304016428 | 30.00 | 40.00 | 16.40 | 28.00 | DAM 31451521 | 31.00 | 45.00 | 15.00 | 21.00 | DAM 32401521 | 32.00 | 40.00 | 15.00 | 21.00 | DAM 34501831 | 34.00 | 50.00 | 18.00 | 31.00 | DAM 34502026 | 34.00 | 50.00 | 20.00 | 26.00 | DAM 38502028 | 38.00 | 50.00 | 20.00 | 28.00 | DAM 39551830 | 39.00 | 55.00 | 18.00 | 30.00 | DAM 39552126 | 39.00 | 55.00 | 21.00 | 26.00 | DAM 40501119 | 40.00 | 50.00 | 11.00 | 19.00 | DAM 4050125205 | 40.00 | 50.00 | 12.50 | 20.50 | DAM 435520529 | 43.00 | 55.00 | 20.50 | 29.00 | DAM 44601831 | 44.00 | 60.00 | 18.00 | 31.00 | DAM 44602026 | 44.00 | 60.00 | 20.00 | 26.00 | DAM 4555125205 | 45.00 | 55.00 | 12.50 | 20.50 | DAM 47631830 | 47.00 | 63.00 | 18.00 | 30.00 | DAM 47631932 | 47.00 | 63.00 | 19.00 | 32.00 | DAM 47632026 | 47.00 | 63.00 | 20.00 | 26.00 | DAM 48602028 | 48.00 | 60.00 | 20.00 | 28.00 |
DAM 48632030 | 48.00 | 63.00 | 20.00 | 30.00 | DAM 49652026 | 49.00 | 65.00 | 20.00 | 26.00 | DAM 50651831 | 50.00 | 65.00 | 18.00 | 31.00 | DAM 50702234 | 50.00 | 70.00 | 22.00 | 34.00 | DAM 51632028 | 51.00 | 63.00 | 20.00 | 28.00 | DAM 536312520 | 53.00 | 63.00 | 12.50 | 20.00 | DAM 54702026 | 54.00 | 70.00 | 20.00 | 26.00 | DAM 55702030 | 55.00 | 70.00 | 20.00 | 30.00 | DAM 55752234 | 55.00 | 75.00 | 22.00 | 34.00 | DAM 55753044 | 55.00 | 75.00 | 30.00 | 44.00 | DAM 58702029 | 58.00 | 70.00 | 20.00 | 29.00 | DAM 59752026 | 59.00 | 75.00 | 20.00 | 26.00 | DAM 60802234 | 60.00 | 80.00 | 22.00 | 34.00 | DAM 6080224352 | 60.00 | 80.00 | 22.40 | 35.20 | DAM 60803145 | 60.00 | 80.00 | 31.00 | 45.00 | DAM 62802229 | 62.00 | 80.00 | 22.00 | 29.00 | DAM 637520528 | 63.00 | 75.00 | 20.50 | 28.00 | DAM 65802028 | 65.00 | 80.00 | 20.00 | 28.00 | DAM 65852234 | 65.00 | 85.00 | 22.00 | 34.00 | DAM 66802233 | 66.00 | 80.00 | 22.00 | 33.00 | DAM 70902234 | 70.00 | 90.00 | 22.00 | 34.00 | DAM 72902229 | 72.00 | 90.00 | 22.00 | 29.00 | DAM 75902030 | 75.00 | 90.00 | 20.00 | 30.00 | DAM 75952236 | 75.00 | 95.00 | 22.00 | 36.00 | DAM 751002234 | 75.00 | 100.00 | 22.00 | 34.00 | DAM 76902232 | 76.00 | 90.00 | 22.00 | 32.00 | DAM 801002240 | 80.00 | 100.00 | 22.00 | 40.00 | DAM 801003554 | 80.00 | 100.00 | 35.00 | 54.00 | DAM 801052235 | 80.00 | 105.00 | 22.00 | 35.00 | DAM 821002230 | 82.00 | 100.00 | 22.00 | 30.00 | DAM 851002030 | 85.00 | 100.00 | 20.00 | 30.00 | DAM 851102235 | 85.00 | 110.00 | 22.00 | 35.00 | DAM 861002232 | 86.00 | 100.00 | 22.00 | 32.00 | DAM 901102537 | 90.00 | 110.00 | 25.00 | 37.00 | DAM 901103554 | 90.00 | 110.00 | 35.00 | 54.00 | DAM 901152235 | 90.00 | 115.00 | 22.00 | 35.00 | DAM 921102230 | 92.00 | 110.00 | 22.00 | 30.00 | DAM 951102030 | 95.00 | 110.00 | 20.00 | 30.00 | DAM 951202235 | 95.00 | 120.00 | 22.00 | 35.00 | DAM 961102232 | 96.00 | 110.00 | 22.00 | 32.00 | DAM 971152229 | 97.00 | 115.00 | 22.00 | 29.00 | DAM 1001202538 | 100.00 | 120.00 | 25.00 | 38.00 |
DAM 1001252538 | 100.00 | 125.00 | 25.00 | 38.00 | DAM 1001253857 | 100.00 | 125.00 | 38.00 | 57.00 | DAM 1031252636 | 103.00 | 125.00 | 26.00 | 36.00 | DAM 10512525376 | 105.00 | 125.00 | 25.00 | 37.60 | DAM 1051302537 | 105.00 | 130.00 | 25.00 | 37.00 | DAM 1051302543 | 105.00 | 130.00 | 25.00 | 43.00 | DAM 1081252640 | 108.00 | 125.00 | 26.00 | 40.00 | DAM 1101352544 | 110.00 | 135.00 | 25.00 | 44.00 | DAM 1151402537 | 115.00 | 140.00 | 25.00 | 37.00 | DAM 1151402544 | 115.00 | 140.00 | 25.00 | 44.00 | DAM 1181402536 | 118.00 | 140.00 | 25.00 | 36.00 | DAM 1201452538 | 120.00 | 145.00 | 25.00 | 38.00 | DAM 1251502544 | 125.00 | 150.00 | 25.00 | 44.00 | DAM 1281502536 | 128.00 | 150.00 | 26.50 | 37.00 | DAM 1301602444 | 130.00 | 160.00 | 24.00 | 44.00 | DAM 1301602538 | 130.00 | 160.00 | 25.00 | 38.00 | DAM 1351602544 | 135.00 | 160.00 | 25.00 | 44.00 | DAM 13516045704 | 135.00 | 160.00 | 45.00 | 70.40 | DAM 1381602636 | 138.00 | 160.00 | 26.00 | 36.00 | DAM 1401652544 | 140.00 | 165.00 | 25.00 | 44.00 | DAM 1401702538 | 140.00 | 170.00 | 25.00 | 38.00 | DAM 1431602040 | 143.00 | 160.00 | 20.00 | 40.00 | DAM 143165265365 | 143.00 | 165.00 | 26.50 | 36.50 | DAM 1451702550 | 145.00 | 170.00 | 25.00 | 50.00 | DAM 1481702637 | 148.00 | 170.00 | 26.00 | 37.00 | DAM 1501752550 | 150.00 | 175.00 | 25.00 | 50.00 | DAM 1501803446 | 150.00 | 180.00 | 34.00 | 46.00 | DAM 158180265367 | 158.00 | 180.00 | 26.50 | 36.70 | DAM 1631802640 | 163.00 | 180.00 | 26.00 | 40.00 | DAM 1651902550 | 165.00 | 190.00 | 25.00 | 50.00 | DAM 1702003547 | 170.00 | 200.00 | 35.00 | 47.00 | DAM 1752002550 | 175.00 | 200.00 | 25.00 | 50.00 | DAM 1752003144 | 175.00 | 200.00 | 31.00 | 44.00 | DAM 1902203447 | 190.00 | 220.00 | 34.00 | 47.00 | DAM 1952202550 | 195.00 | 220.00 | 25.00 | 50.00 | DAM 1952204570 | 195.00 | 220.00 | 45.00 | 70.00 | DAM 200220315 | 200.00 | 220.00 | 31.50 | 49.90 | DAM 2002253144 | 200.00 | 225.00 | 31.00 | 44.00 | DAM 2152402550 | 215.00 | 240.00 | 25.00 | 50.00 | DAM 2152404267 | 215.00 | 240.00 | 42.00 | 67.00 | DAM 2302503048 | 230.00 | 250.00 | 30.00 | 48.00 |
|
