 Materials:
Temp. Range
 Nylon
-54°C   to   121°C
 Hytrel®
-54°C   to   149°C
 PTFE
-268°C   to   232°C
 Polyurethane
-54°C   to   105°C

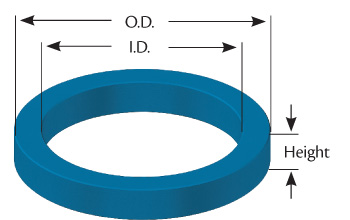

Part Number
I.D.
O.D.
Height
MB 12500125
1/8
3/8
1/8
MB 12500250
1/4
1/2
1/8
MB 12500312
5/16
9/16
1/8
MB 12500375
3/8
5/8
1/8
MB 12500500
1/2
3/4
1/8
MB 12500625
5/8
7/8
1/8
MB 12500687
11/16
15/16
1/8
MB 12500812
13/16
1 - 1/16
1/8
MB 12500937
15/16
1 - 3/16
1/8
MB 12501000
1
1 - 1/4
1/8
MB 12501062
1 - 1/16
1 - 5/16
1/8
MB 12501250
1 - 1/4
1 - 1/2
1/8
MB 12501375
1 - 3/8
1 - 5/8
1/8
MB 12501500
1 - 1/2
1 - 3/4
1/8
MB 18700500
1/2
7/8
3/16
MB 18700625
5/8
1
3/16
MB 18701000
1
1 - 3/8
3/16
MB 18701250
1 - 1/4
1 - 5/8
3/16
MB 18701312
1 - 5/16
1 -11/16
3/16
MB 18701500
1 - 1/2
1 - 7/8
3/16
MB 18701625
1 - 5/8
2
3/16
MB 18701875
1 - 7/8
2 - 1/4
3/16
MB 18701937
1 -15/16
2 - 5/16
3/16
MB 18702000
2
2 - 3/8
3/16
MB 18702125
2 - 1/8
2 - 1/2
3/16
MB 18702500
2 - 1/2
2 - 7/8
3/16
MB 18702625
2 - 5/8
3
3/16
MB 18702750
2 - 3/4
3 - 1/8
3/16
MB 18703000
3
3 - 3/8
3/16
MB 18703125
3 - 1/8
3 - 1/2
3/16
MB 18703250
3 - 1/4
3 - 5/8
3/16
MB 18703500
3 - 1/2
3 - 7/8
3/16
MB 18703625
3 - 5/8
4
3/16
MB 18703875
3 - 7/8
4 - 1/4
3/16
MB 25000500
1/2
1
1/4
MB 25000750
3/4
1 - 1/4
1/4
MB 25000875
7/8
1 - 3/8
1/4
MB 25001000
1
1 - 1/2
1/4
MB 25001062
1 - 1/16
1 - 9/16
1/4
MB 25001250
1 - 1/4
1 - 3/4
1/4
MB 25001312
1 - 5/16
1 -13/16
1/4
MB 25001375
1 - 3/8
1 - 7/8
1/4
MB 25001500
1 - 1/2
2
1/4


Part Number
I.D.
O.D.
Height
MB 25001750
1 - 3/4
2 - 1/4
1/4
MB 25001875
1 - 7/8
2 - 3/8
1/4
MB 25002000
2
2 - 1/2
1/4
MB 25002250
2 - 1/4
2 - 3/4
1/4
MB 25002500
2 - 1/2
3
1/4
MB 25002625
2 - 5/8
3 - 1/8
1/4
MB 25002750
2 - 3/4
3 - 1/4
1/4
MB 25002875
2 - 7/8
3 - 3/8
1/4
MB 25003000
3
3 - 1/2
1/4
MB 25003250
3 - 1/4
3 - 3/4
1/4
MB 25003375
3 - 3/8
3 - 7/8
1/4
MB 25003500
3 - 1/2
4
1/4
MB 25003750
3 - 3/4
4 - 1/4
1/4
MB 25004000
4
4 - 1/2
1/4
MB 25004125
4 - 1/8
4 - 5/8
1/4
MB 25004250
4 - 1/4
4 - 3/4
1/4
MB 25004500
4 - 1/2
5
1/4
MB 25005000
5
5 - 1/2
1/4
MB 25005250
5 - 1/4
5 - 3/4
1/4
MB 25005500
5 - 1/2
6
1/4
MB 25006000
6
6 - 1/2
1/4
MB 25006250
6 - 1/4
6 - 3/4
1/4
MB 25007250
7 - 1/4
7 - 3/4
1/4
MB 25007500
7 - 1/2
8
1/4
MB 25007750
7 - 3/4
8 - 1/4
1/4
MB 250010000
10
10 - 1/2
1/4
MB 250010750
10 - 3/4
11 - 1/4
1/4
MB 250013000
13
13 - 1/2
1/4
MB 28102250
2 - 1/4
2 -13/16
9/32
MB 28108000
8
8 - 9/16
9/32
MB 31201250
1 - 1/4
1 - 7/8
5/16
MB 31201375
1 - 3/8
2
5/16
MB 31201500
1 - 1/2
2 - 1/8
5/16
MB 31201625
1 - 5/8
2 - 1/4
5/16
MB 31201750
1 - 3/4
2 - 3/8
5/16
MB 31201875
1 - 7/8
2 - 1/2
5/16
MB 31202000
2
2 - 5/8
5/16
MB 31202250
2 - 1/4
2 - 7/8
5/16
MB 31202375
2 - 3/8
3
5/16
MB 31202500
2 - 1/2
3 - 1/8
5/16
MB 31203000
3
3 - 5/8
5/16
MB 31203125
3 - 1/8
3 - 3/4
5/16
MB 31203500
3 - 1/2
4 - 1/8
5/16


Part Number
I.D.
O.D.
Height
MB 31203750
3 - 3/4
4 - 3/8
5/16
MB 31204125
4 - 1/8
4 - 3/4
5/16
MB 31204250
4 - 1/4
4 - 7/8
5/16
MB 31204375
4 - 3/8
5
5/16
MB 31204500
4 - 1/2
5 - 1/8
5/16
MB 31205375
5 - 3/8
6
5/16
MB 31208000
8
8 - 5/8
5/16
MB 37500875
7/8
1 - 5/8
3/8
MB 37501000
1
1 - 3/4
3/8
MB 37501250
1 - 1/4
2
3/8
MB 37501375
1 - 3/8
2 - 1/8
3/8
MB 37501500
1 - 1/2
2 - 1/4
3/8
MB 37501625
1 - 5/8
2 - 3/8
3/8
MB 37501750
1 - 3/4
2 - 1/2
3/8
MB 37501875
1 - 7/8
2 - 5/8
3/8
MB 37502000
2
2 - 3/4
3/8
MB 37502250
2 - 1/4
3
3/8
MB 37502375
2 - 3/8
3 - 1/8
3/8
MB 37502500
2 - 1/2
3 - 1/4
3/8
MB 37502625
2 - 5/8
3 - 3/8
3/8
MB 37502750
2 - 3/4
3 - 1/2
3/8
MB 37503000
3
3 - 3/4
3/8
MB 37503125
3 - 1/8
3 - 7/8
3/8
MB 37503250
3 - 1/4
4
3/8
MB 37503375
3 - 3/8
4 - 1/8
3/8
MB 37503500
3 - 1/2
4 - 1/4
3/8
MB 37503750
3 - 3/4
4 - 1/2
3/8
MB 37503875
3 - 7/8
4 - 5/8
3/8
MB 37504000
4
4 - 3/4
3/8
MB 37504125
4 - 1/8
4 - 7/8
3/8
MB 37504250
4 - 1/4
5
3/8
MB 37504375
4 - 3/8
5 - 1/8
3/8
MB 37504500
4 - 1/2
5 - 1/4
3/8
MB 37504750
4 - 3/4
5 - 1/2
3/8
MB 37504875
4 - 7/8
5 - 5/8
3/8
MB 37505000
5
5 - 3/4
3/8
MB 37505250
5 - 1/4
6
3/8
MB 37505375
5 - 3/8
6 - 1/8
3/8
MB 37505875
5 - 7/8
6 - 5/8
3/8
MB 37506000
6
6 - 3/4
3/8
MB 37506250
6 - 1/4
7
3/8
MB 37506500
6 - 1/2
7 - 1/4
3/8
MB 37507000
7
7 - 3/4
3/8
MB 37507250
7 - 1/4
8
3/8
MB 37507500
7 - 1/2
8 - 1/4
3/8
MB 37507750
7 - 3/4
8 - 1/2
3/8
MB 37509000
9
9 - 3/4
3/8
MB 37509250
9 - 1/4
10
3/8
MB 37509750
9 - 3/4
10 - 1/2
3/8
MB 375010000
10
10 - 3/4
3/8
MB 375010500
10 - 1/2
11 - 1/4
3/8


Part Number
I.D.
O.D.
Height
MB 375011000
11
11 - 3/4
3/8
MB 375011250
11 - 1/4
12
3/8
MB 43701000
1
1 - 7/8
7/16
MB 43702125
2 - 1/8
3
7/16
MB 43705000
5
5 - 7/8
7/16
MB 50002000
2
3
1/2
MB 50002250
2 - 1/4
3 - 1/4
1/2
MB 50002375
2 - 3/8
3 - 3/8
1/2
MB 50002500
2 - 1/2
3 - 1/2
1/2
MB 50002750
2 - 3/4
3 - 3/4
1/2
MB 50003000
3
4
1/2
MB 50003500
3 - 1/2
4 - 1/2
1/2
MB 50003750
3 - 3/4
4 - 3/4
1/2
MB 50004000
4
5
1/2
MB 50004250
4 - 1/4
5 - 1/4
1/2
MB 50004500
4 - 1/2
5 - 1/2
1/2
MB 50005000
5
6
1/2
MB 50005250
5 - 1/4
6 - 1/4
1/2
MB 50005500
5 - 1/2
6 - 1/2
1/2
MB 50006000
6
7
1/2
MB 50006500
6 - 1/2
7 - 1/2
1/2
MB 50006750
6 - 3/4
7 - 3/4
1/2
MB 50007000
7
8
1/2
MB 50008000
8
9
1/2
MB 50008500
8 - 1/2
9 - 1/2
1/2
MB 50009000
9
10
1/2
MB 50009500
9 - 1/2
10 - 1/2
1/2
MB 500010000
10
11
1/2
MB 500010500
10 - 1/2
11 - 1/2
1/2
MB 500011500
11 - 1/2
12 - 1/2
1/2
MB 500012000
12
13
1/2
MB 500013500
13 - 1/2
14 - 1/2
1/2
MB 500015000
15
16
1/2
MB 500017000
17
18
1/2
MB 500019000
19
20
1/2
MB 500021000
21
22
1/2
MB 500029000
29
30
1/2
MB 62502000
2
3 - 1/4
5/8
MB 62502500
2 - 1/2
3 - 3/4
5/8
MB 62502750
2 - 3/4
4
5/8
MB 62503000
3
4 - 1/4
5/8
MB 62503250
3 - 1/4
4 - 1/2
5/8
MB 62504625
4 - 5/8
5 - 7/8
5/8
MB 62504750
4 - 3/4
6
5/8
MB 62506750
6 - 3/4
8
5/8
MB 62507000
7
8 - 1/4
5/8
MB 625012750
12 - 3/4
14
5/8
MB 625030000
30
31 - 1/4
5/8
MB 75006500
6 - 1/2
8
3/4
MB 75007500
7 - 1/2
9
3/4
MB 75008000
8
9 - 1/2
3/4
